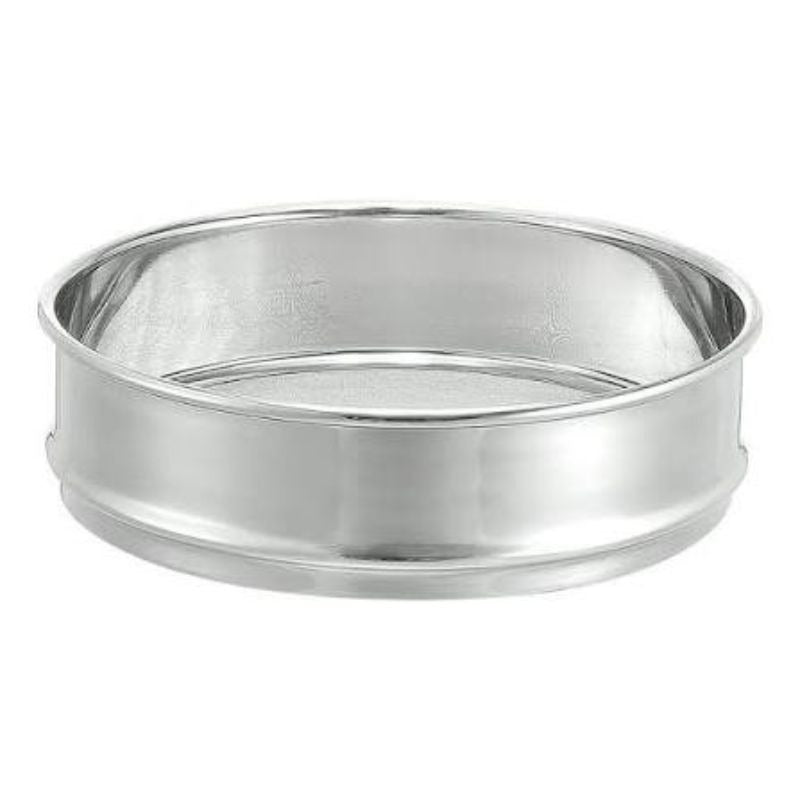

Sieve Mesh Fine 8″

This 8-inch laboratory test sieve is designed for separating and grading powders, granules and aggregates by particle size. Choose the mesh number required for your laboratory method from the available variants.

Use a single sieve for a selected size fraction or combine compatible sieves in a stack for staged particle separation. The reusable wire mesh makes it useful for teaching practicals, materials testing and routine sample preparation.

Specifications

• Nominal diameter: 8 inches, approximately 200 mm.
• Mesh material: stainless-steel wire.
• Frame material: stainless steel or brass, depending on the supplied version.
• Available mesh numbers: #4, #8, #10, #16, #30, #40, #50, #80, #100, #200, #230, #250, #270, #300, #350 and #400.

Selecting your sieve

Select the required mesh number before adding to cart. Mesh number is not an aperture measurement in micrometres; confirm the required opening size and applicable test standard before ordering. Check frame dimensions and shaker compatibility if using a sieve stack.

Applications

Soil and aggregate analysis, civil and geotechnical engineering practicals, powder grading, food and pharmaceutical particle sizing, and materials research.

Care and use

Confirm suitability for wet sieving and your sample material before use. Clean carefully without distorting the mesh, and inspect for blocked openings or damage between tests.
