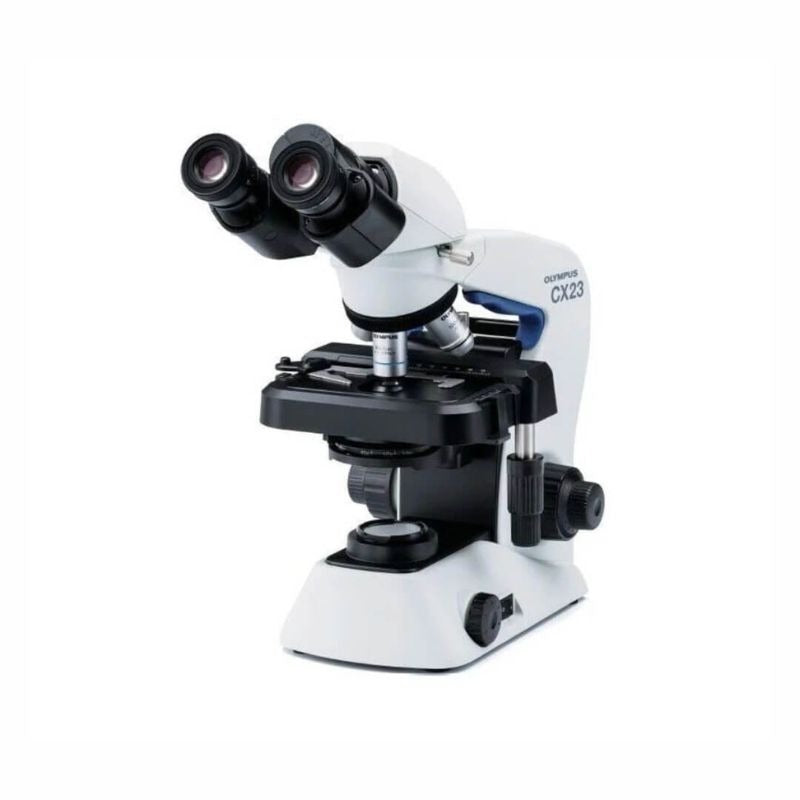

Olympus Binocular Microscope CX23

The Olympus CX23 binocular biological microscope is listed for educational and routine laboratory slide observation. Its binocular viewing arrangement, mechanical stage and coarse/fine focusing controls support an organized microscopy workstation for students and laboratory users.

Position a prepared slide on the mechanical stage and use the appropriate objective for your observation, following the supplied microscope and objective instructions.

Listed optical configuration

• Model: Olympus CX23, binocular configuration.
• Eyepieces: wide-field 10×.
• Objectives: plan achromat 4×, 10×, 40× and 100×, as listed.
• Nominal total magnifications with 10× eyepieces: 40×, 100×, 400× and 1000×.
• Illumination: transmitted LED.
• Condenser: Abbe, NA 1.25, as listed.

Viewing and slide control

• Listed observation-tube inclination: 30°.
• Listed interpupillary adjustment: 48–75 mm.
• Mechanical stage travel: X 76 mm and Y 30 mm, as listed.
• Coaxial coarse/fine focusing and focus-limit mechanism, as listed.

Size and applications

Listed binocular dimensions are 198 × 398 × 386 mm (W × D × H), with an approximate weight of 5.9 kg. Suitable for compatible brightfield teaching and routine slide-observation workflows.

Confirm the supplied configuration

Verify the exact objective set, accessories, electrical requirements and model documentation before ordering. The earlier description includes trinocular and darkfield information, which does not establish that these features are supplied with this binocular listing. Confirm the 100× objective's immersion requirements. Warranty duration and local coverage require supplier confirmation; a five-year warranty is not verified here.

Care

Follow the manufacturer's carrying, cleaning and storage instructions. Use appropriate optical-cleaning materials and any immersion medium specified for the objective. Camera equipment, slides, immersion oil and optional accessories are not confirmed as included.
